MIG Welding Equipments

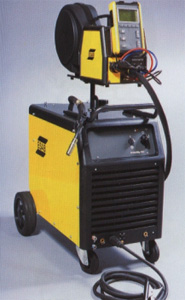

AristoMig 320/450

Multi-process power sources combining MIG/MAG, pulse MIG, MMA and carbon arc gouging (450). Reliable, smooth starts and ends supported by efficient hot-start and crater-fill functions. Effective man-machine communication via a number of user-friendly control panels - M2, MA4, MA6 or AristoPendant U8. A wide range of predefined synergic lines. The AristoPendant U8 offers a facility for creating and storing "tailor-made" synergic lines for any material or shielding gas combination. Memory for up to 99 welding parameters. The TrueArcVoltage System measures the correct arc voltage value independent of the length of the connection cable, return cable or PSF welding gun. Device-Net, can open and Profi bus are supported to create an effective interface to mechanised welding applications (applied solutions).

Delivery includes : 5 m of mains cable, return lead with clamp, guide pin for the wire feeder and gas bottle shelf

  AristoMig 320 AristoMig 450
Mains supply, V/Hz 400-415 / 50-60 400-415 / 50-60
Fuse, slow, A 16 20
Mains cable, 0 mm2 4x4 4x4
Max output at 45% duty cycle, A - 450
Max output at 60% duty cycle, A 320 425
Max output at 100% duty cycle, A 270 360
Current range MIG, A 15-320 15-450
Current range MMA DC, A 16-320 16-450
Open circuit voltage, V 65-80 65-80
Weight, kg 96 110
